Canopy Stay Window

Positioning of Fittings & Fittings Proposal

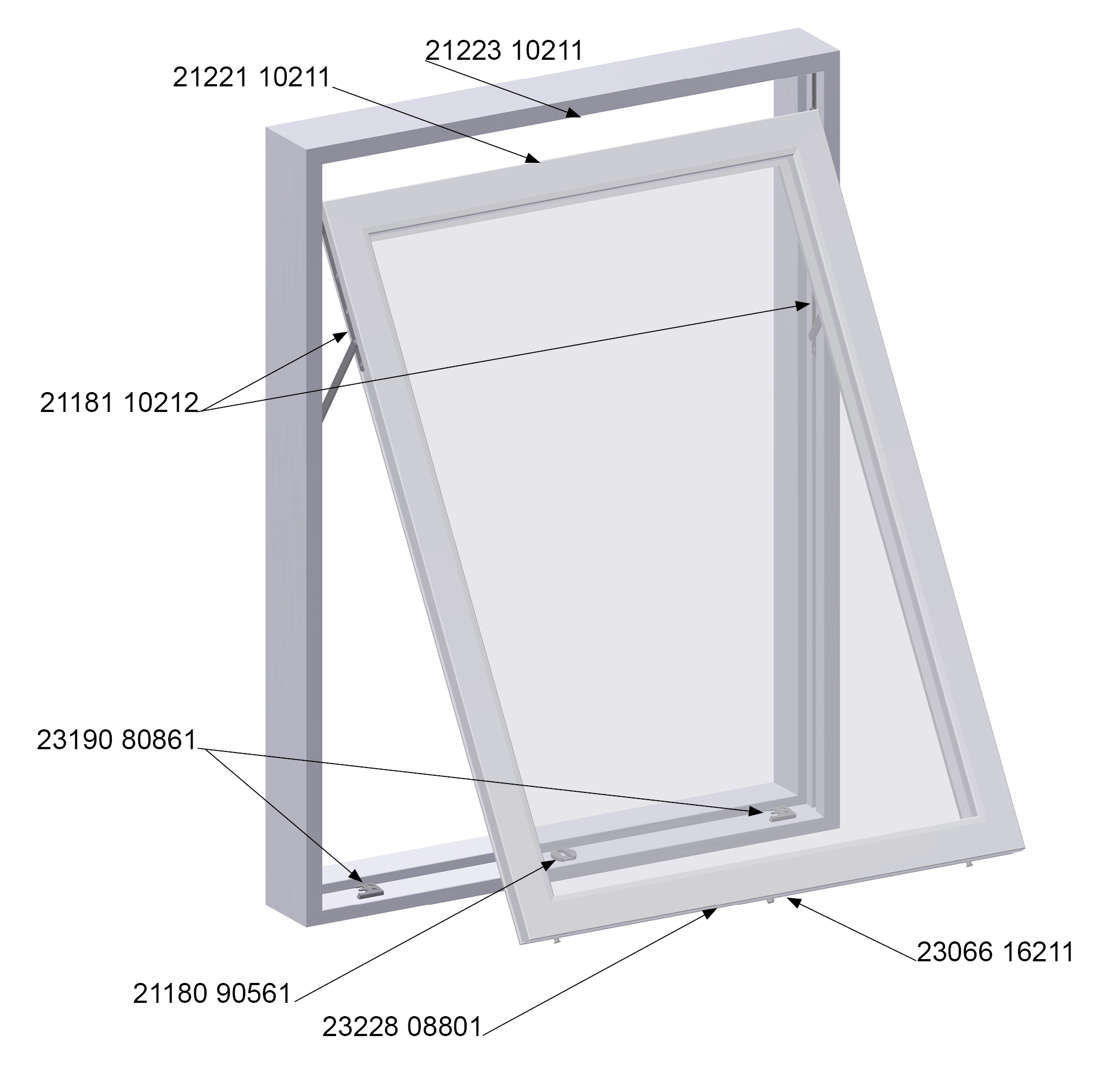

Positioning of fittings

  • Outer frame dimensions (HxW) 1200 x 900 mm
  • Outer sash dimensions (HxW) 1136 x 836 mm

In this example the following fittings are used:

  • 1 Set Canopy stay IPA No. 21181-10212
  • 1 Pc. Espagnolette with mushroom head bolts IPA No. 23066-16211 (Backset 28)
  • 2 Pcs. Receivers IPA No. 23190-80861
  • 1 Pc. Guide IPA No. 23180-90561
  • 1 Pc. Support fitting IPA No. 21221-10211
  • 1 Pc. Receiver for support fitting IPA No. 21223-10211
  • 1 Pc. Handle IPA No. 23228-08801

Fittings Proposal

1. Canopy stay for IPA canopy stay window IPA No. 21180-81 & 21184
Fitting must be ordered according to the height of the sash.
The largest possible fitting must be used.

1b. Canopy stay for IPA canopy stay window IPA No. 21179 & 21182
Fitting must be ordered according to the height of the sash.
The largest possible fitting must be used.

2a. Espagnolette with mushroom head bolts IPA No. 23051-60 & 23061-70. Espagnolette must be ordered according to the width of the window sash.
The largest possible espagnolette must be used.

3a. Guides for espagnolette IPA No. 23180-82

4a. Receivers for espagnolette IPA No. 23190-92

2b. Espagnolette with roller bolts IPA No. 23151-60 & 23161-70. Espagnolette must be ordered according to the width of the window sash.
The largest possible espagnolette must be used.

3b. Guides for espagnolette IPA No. 23180-82
4b. Receivers for espagnolette IPA No. 23183-87
5. Handles IPA No. 23228-29 For IPA No. 23051-60 & 23061-70 use right-handed handles.
6. Support fitting IPA No. 21221 with receiver IPA No. 21223, or support fitting IPA No. 21222. To be used on windows with a width of 900 mm or more.

Whether to use one or the other canopy stay, espagnolette or receiver will depend on the window profile and the dimensions. For further fittings proposals please check the IPA Catalogue on www.ipafittings.com.
